Solar Panel Water Drain Clip | Solarud NEXTGEN

Solar Panel Water Drain Clip | Solarud NEXTGEN

€1.099,00 EUR
€1.099,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

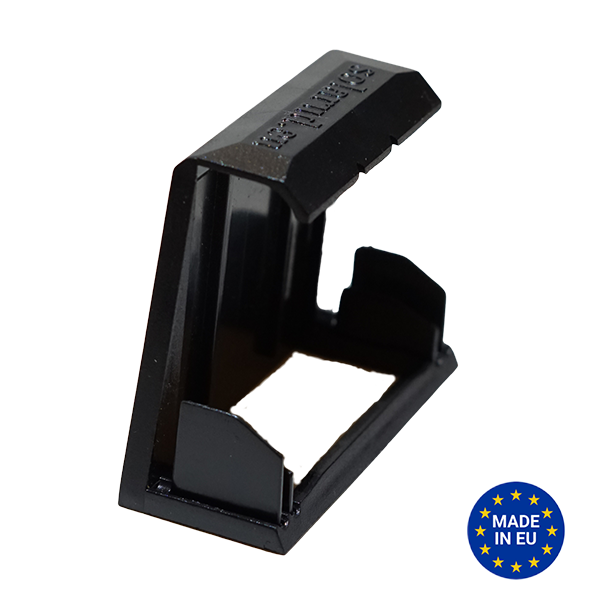

Nextgen Solar Water Drain Clip

Engineered for better PV performance, the Solarud Nextgen Solar Panel Water Drain Clip prevents water pooling and dirt accumulation on the lower edge of solar modules, keeping the glass cleaner, thus improving energy yield and reducing cleaning frequency.

Built with a high-flow anti-clog channel and native UV-resistant polymers, our adaptable water drainage clamp installs in seconds and is compatible with 28–40 mm module frames. Ideal for solar panels installed with low-tilt at residential systems, commercial rooftops and large utility-scale plants.

Choose the ideal pack size or combine Nextgen with Nano (tight-gap modules) or Crocs (cable-management) for a complete PV optimisation solution.

Details:

  • Prevents water pooling and reduces soiling on PV modules
  • Improves energy yield, especially in low-tilt installations
  • High-flow anti-clog channel for efficient drainage
  • Native UV-resistant polymer engineered for harsh outdoor conditions
  • Tool-free snap-on installation
  • Fits most solar module frames: 28–40 mm high and 8-11 mm thick
  • Reduces cleaning frequency and O&M costs
  • Available in multiple pack sizes
  • Can be combined with Nano and Crocs for full optimisation

When to Use the Nextgen Solar Drainage Clip:

How to Install Solar Water Syphon:

View full details

Key Features & Benefits

  • Advanced drainage system for superior water control.
  • Ultra-durable construction for professional and personal use.
  • Lightweight and easy to install.
  • Available in multiple pack sizes and special bundles.
  • Removes stagnant water: capillary channels drain the water that collects on the lower edge of the panel after rain or dew.
  • Prevents the dirt band: without standing water, dust and sediment no longer dry into a dirty strip over the bottom row of cells. Panels stay cleaner and need fewer cleaning cycles.
  • Anti-clog design: heavily polished interior channels keep dust and sand from blocking the drainage.
  • No shading, robot friendly: slim top that does not cover the cells, with a chamfered edge so cleaning robots pass over it.
  • One clip for most frames: fits frame heights from 28 to 40 mm and frame thicknesses from 8 to 11 mm.
  • Tool-free installation: bend the ribs to your frame size and clip it on. No drilling, no adhesive.
  • Built to last outdoors: natively UV resistant polymer, reusable and recyclable, with a 6-year warranty.
  • Small gaps between modules? Choose the Solarud Nano, designed for gaps of 1 to 2.5 cm.
  • Material: High-quality UV resistant polymers.
  • Drainage: Capillary drainage channels technology.
  • Installation: Snap-on design for quick and easy setup.
  • Compatibility: Frame height 28 to 40 mm, frame thickness 8 to 11 mm.
  • Dimensions and weight: 47.5 x 60 x 23.5 mm, 9 g per clip.
  • Max. continuous temperature: about 105 ºC.
  • Package Options: Available in 50, 100, 250, 500, and 1,000 units, or in a bundle with Croc, through our website. For larger quantities, please contact us via email for a custom quote.
  • Custom Colors: Black.
  • Installation Guide: Available upon request or after purchase.
  • Professional Support: Technical assistance available for large installations.
  • Warranty: 6-year warranty on the Solarud NEXTGEN clip.
